SPECIFICATIONS

Battery Type: LITHIUM ION

Brand Name: ACEBEAM

Certification: ce,ROHS,RoHS,CE

Hign-concerned Chemical: None

Item Type: Headlamps

Model Number: H30

Origin: Mainland China

Purpose: lighting

Waterproof: Yes

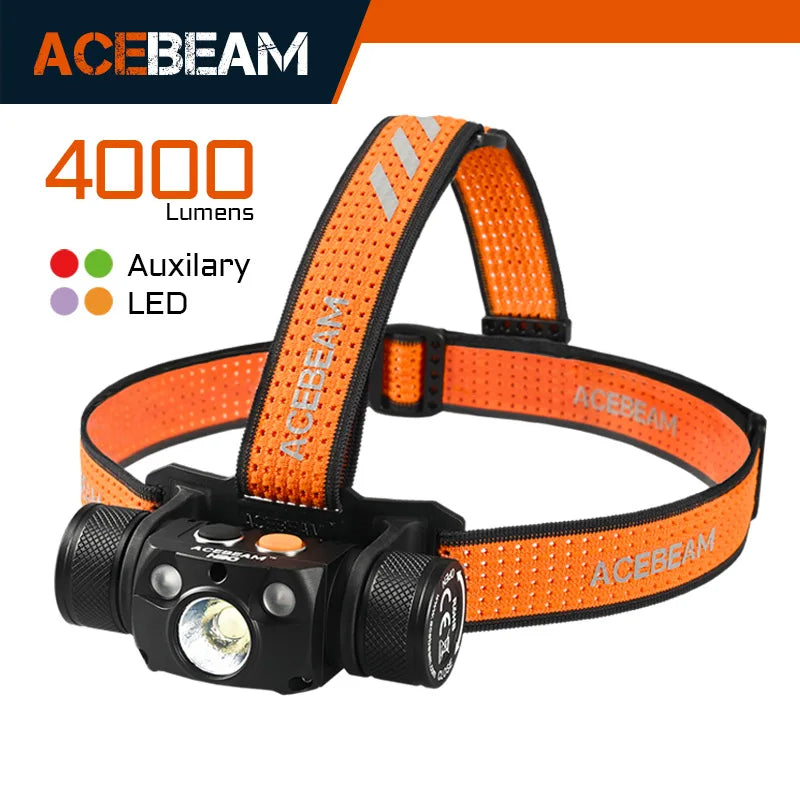

H30 is a convenient mining headlamp, the brightest of this kind using a single 21700 battery, with multiple scene selections, without the need for a lengthy external power supply. Utilizing a high-power XHP 70.2 LED, it is capable of shooting a maximum output of 4000 lumens, that can go a length of 171 meters, covering a wide area for sufficient lighting. It features two secondary LEDs mounted on either side of the main LED, having three secondary LED configurations for option: Red-Green, Red-UV, and Red-CRI90. Red preserves your night vision, UV is for policing and crime scene investigation and CRI light can present the original color of objects. It has a safety lockout design to prevent accidental activation.

Features:

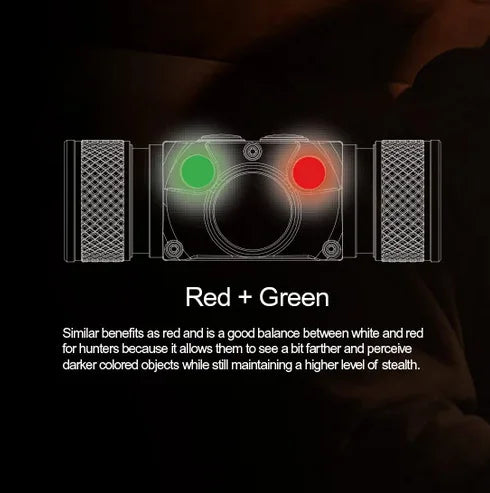

LED 1:

1 x XHP70.2 LED with lifespan of 50,000 hours

1 x XPE2-R2 630nm Red light

1 x XPE2-G3 530nm Green light

Output Mode & Runtime:

Ultra-Low: 3 lms; 200 hours; 5 meters; 6cd

Low: 120 lms; 23.7 hours; 40 meters; 410cd

Medium: 380 lms; 7.5 hours; 54 meters; 740cd

High: 1100 lms; 2.9 hours; 89 meters; 2000cd

Turbo: 2200 lms - 1000 lms; 5.5 minutes + 2.4 hours; 118 meters; 3500cd

Turbo-Max: 4000 lms - 1000 lms; 1.5 minutes + 2.5 hours; 171 meters; 7300cd

SOS: 50 lms; 72 hours;

Red light: 50 lms; 10 hours; 15 meters; 60cd

Green light: 70 lms; 11 hours; 17 meters; 70cd

LED 2:

1 x XHP70.2 LED with lifespan of 50,000 hours

1 x XPE2-R2 630nm Red light

1 x Nichia 276A 365nm UV

Output Mode & Runtime:

Ultra-Low: 3 lms; 200 hours; 5 meters; 6cd

Low: 120 lm; 23.7 hours; 40 meters; 410cd

Medium: 380 lms; 7.5 hours; 54 meters; 740cd

High: 1100 lms; 2.9 hours; 89 meters; 2000cd

Turbo: 2200 lms - 1000 lms; 5.5 minutes + 2.4 hours; 118 meters; 3500cd

Turbo-Max: 4000 lms - 1000 lms; 1.5 minutes + 2.5 hours; 171 meters; 7300cd

SOS: 50 lms; 72 hours;

Red light: 50 lms; 10 hours; 15 meters; 60cd

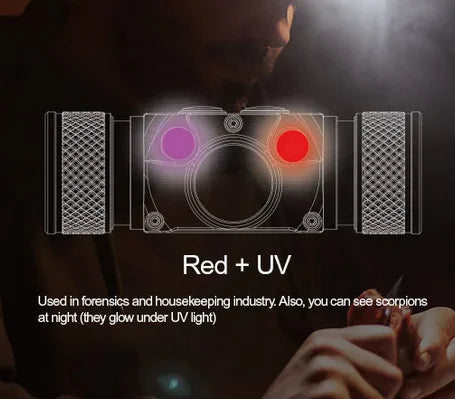

UV light: 1.6W; 7.5 hours; 5 meters; 7cd

LED 3:

1 x XHP70.2 LED with lifespan of 50,000 hours

1 x XPE2-R2 630nm Red light

1 x Nichia 219C CRI≥90

Output Mode & Runtime:

Ultra-Low: 3 lms; 200 hours; 5 meters; 6cd

Low: 120 lms; 23.7 hours; 40 meters; 410cd

Medium: 380 lms; 7.5 hours; 54 meters; 740cd

High: 1100 lms; 2.9 hours; 89 meters; 2000cd

Turbo: 2200 lms - 1000 lms; 5.5 minutes + 2.4 hours; 118 meters; 3500cd

Turbo-Max: 4000 lms - 1000 lms; 1.5 minutes + 2.5 hours; 171 meters; 7300cd

SOS: 50 lms; 72 hours;

Red light: 50 lms; 10 hours; 15 meters; 60cd

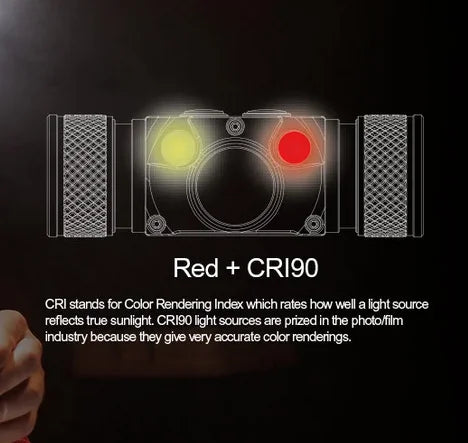

CRI: 120 lms; 11 hours; 21 meters; 110cd

Max 4000 lumens powered by included 1x 21700 battery (IMR21700NP-510A)

Max runtime: 200 hours

Max beam distance: 171 m

Peak beam intensity: 7300 cd

Low Voltage Indication:

Ultra-Low: 3V Low: 3V Medium: 3V

High: 3V Turbo: 3.2V Turbo-max.: 3.2V

SOS: 3V Red light: 3V Green light: 3V

The H30 will be turned off when the voltage at:

Ultra Low: 2.7V Low: 2.7V Medium: 2.7V

High: 2.7V Turbo: 2.9V Turbo-max.: 2.9V

SOS: 2.7V Red light: 2.7V Green light: 2.7V

Charging current: 2A

Discharge current: 2A

Working voltage: 3V to 8.4V

Impact resistance: 1 meter

Waterproof: IPX68 (2 meters submersible)

Size:89.4mm(length)x40.8mm(head diameter)x29mm(tube diameter)

Weight: 80g excluding battery; 151.5g including 1x21700 battery (IMR21700NP-510A); headband with silicone holder 38.8g

Multi-output Rechargeable Headlamp

Color temperature: 5000K & 6500K for option

Powered by 1 x 21700 5100mAh rechargeable Li-ion battery (Included), 1 x 18650 battery compatibility

Battery discharge temperature range: 0℃~70℃

Suits multiple scenarios with a USB-C charging port-3 times faster than regular USB

Two way USB-C cable capable of charging phones, tablets and more as power bank

Red and Green light for nighttime illumination and alerting

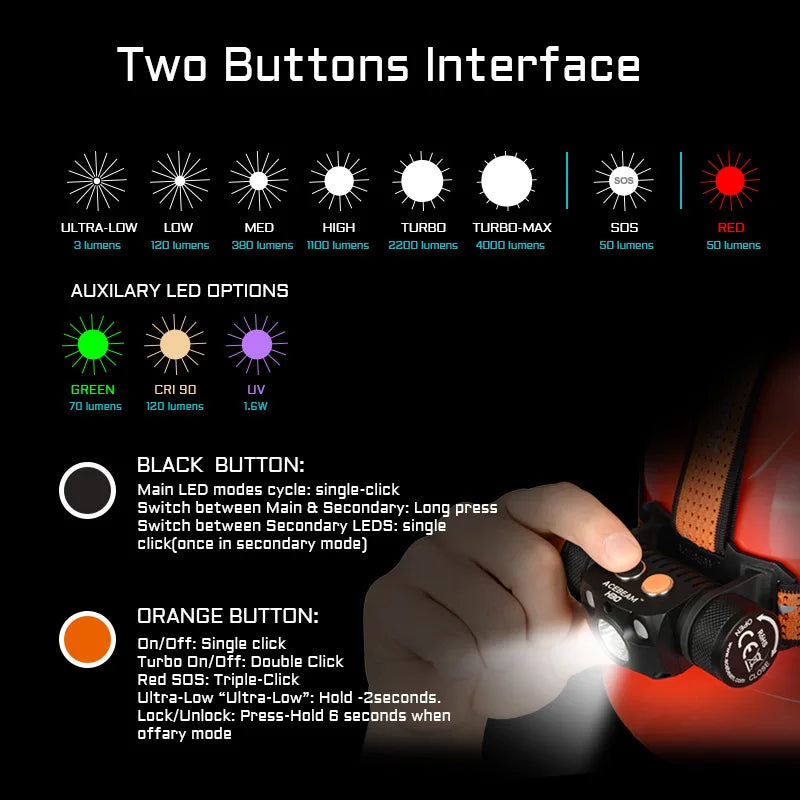

Dual switches for all easy operation

Multi-color LED for options

6 brightness levels option and Red SOS special mode

Reflective headband design with high elasticity and sweat channels

Made of durable aerospace-grade aluminum alloy

Premium type Ⅲ hard-anodized anti-abrasive finish

Highly polished smooth reflector creates max throw

All circuitry contact points are gold-plated, providing better conductivity and superior durability

Comfortable chafe-free and breathable nylon headband

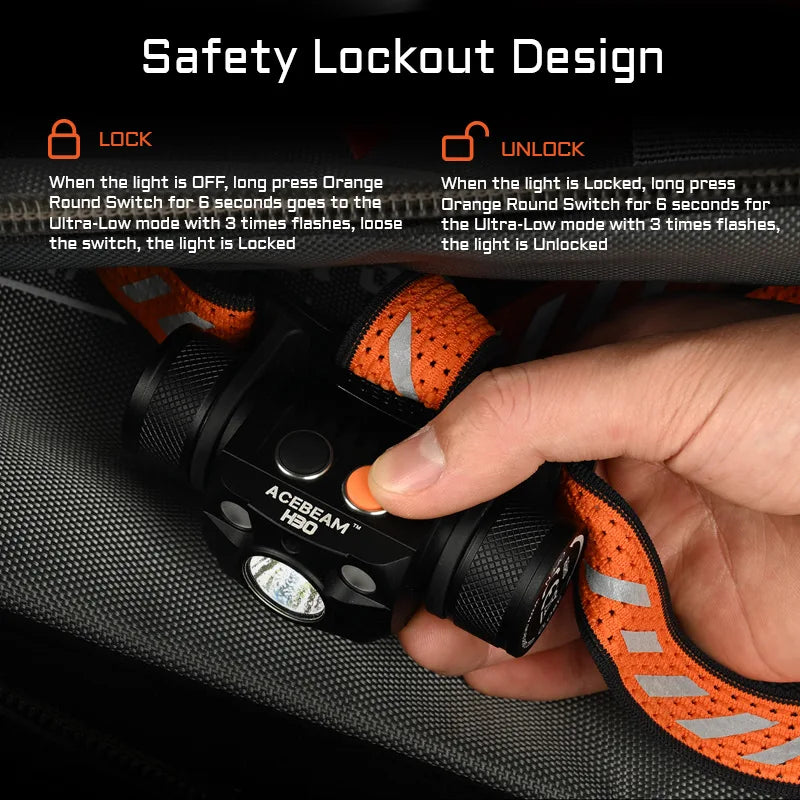

Lockout to prevent accidental activation

Toughened ultra-clear glass lens with anti-reflective coating

Low-voltage warning reminds when battery charging is needed

Integrated Precision Digital Optics Technology provides extreme reflector performance

Automatic temperature regulation allows the light to regulate its output and adapt to the ambient environment, therefore maintaining optimal performance.

Flashlight Transport Warning

Please remember to turn off light and stick film insulation between battery and switch during transportation.
